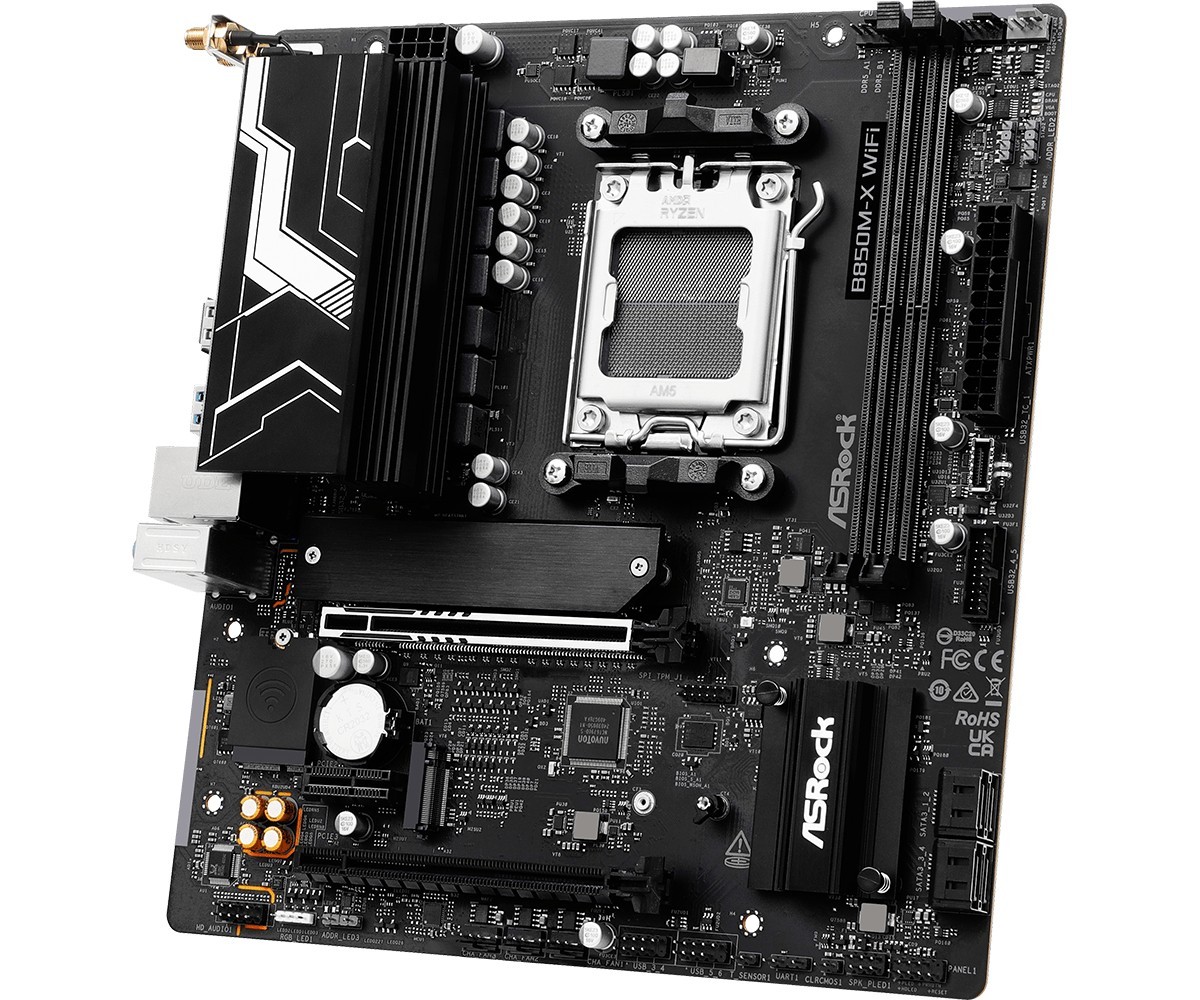

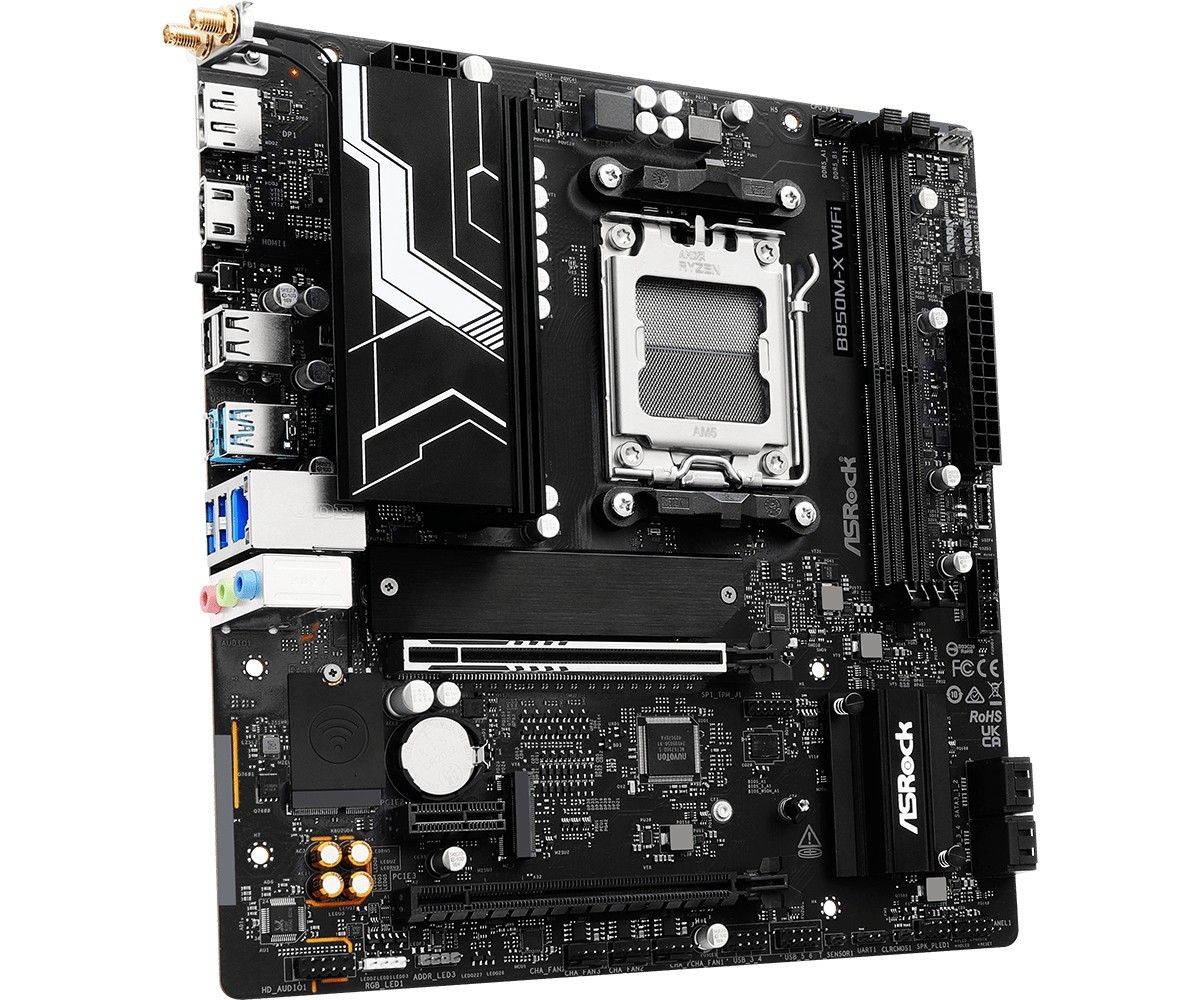

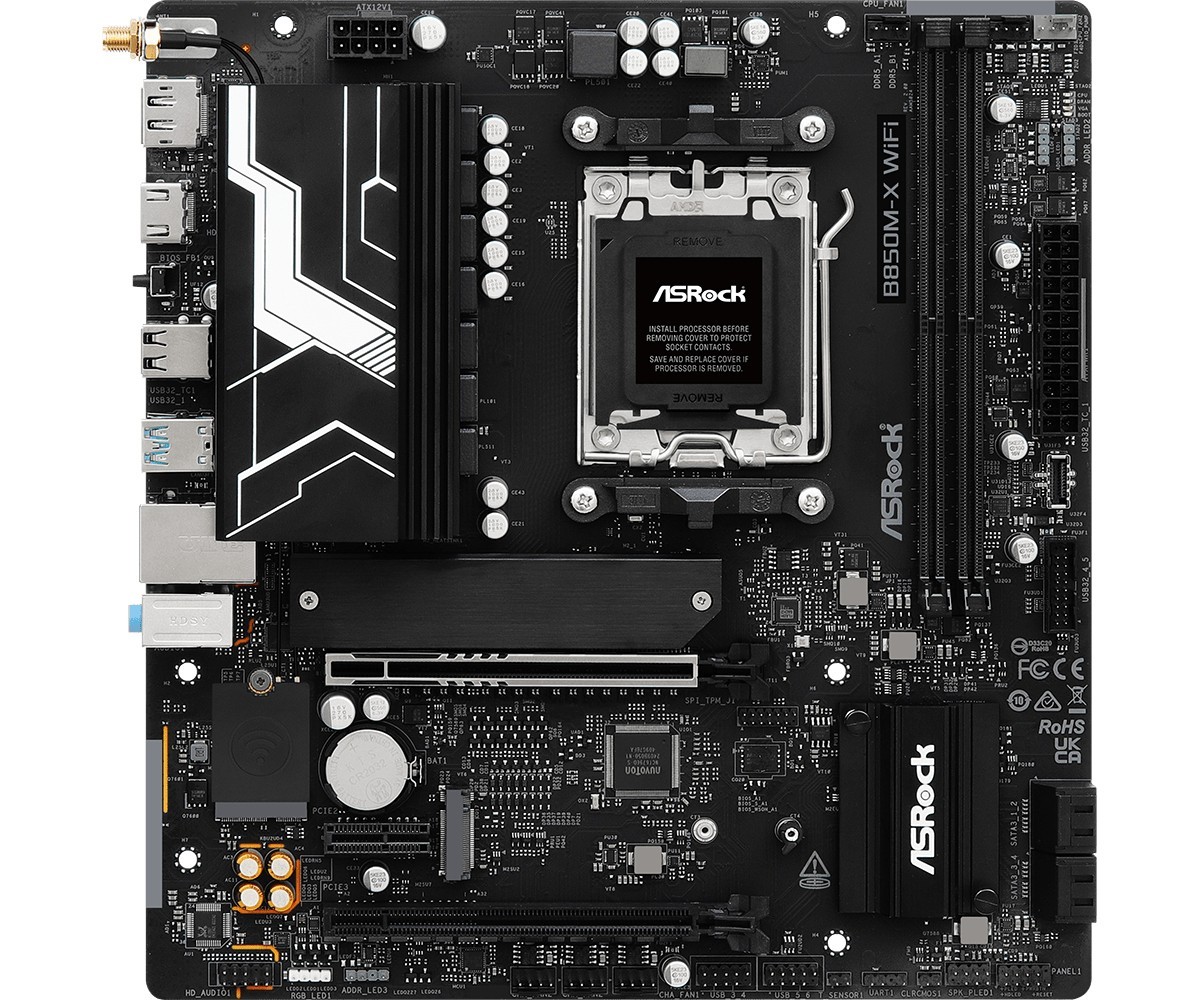

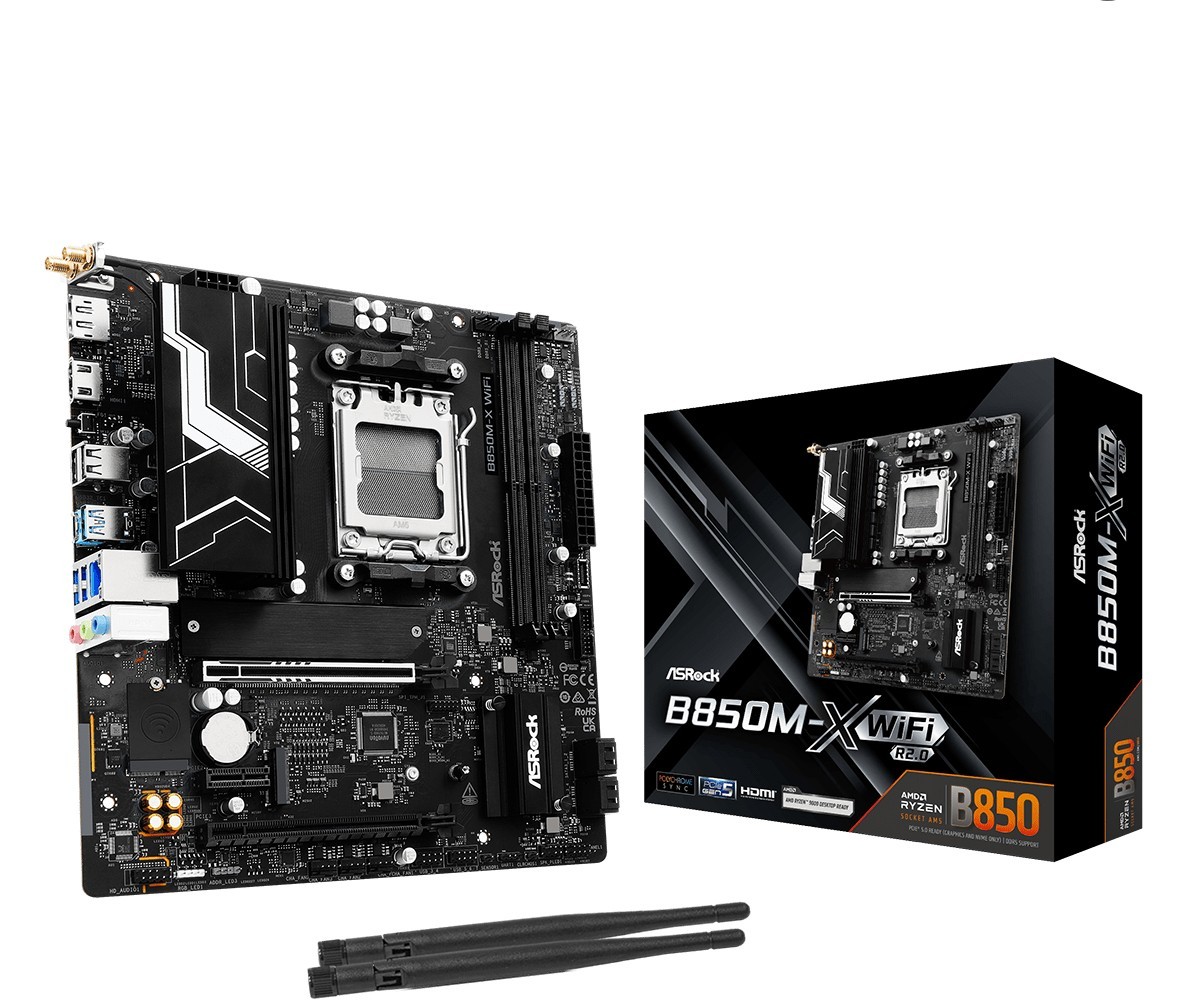

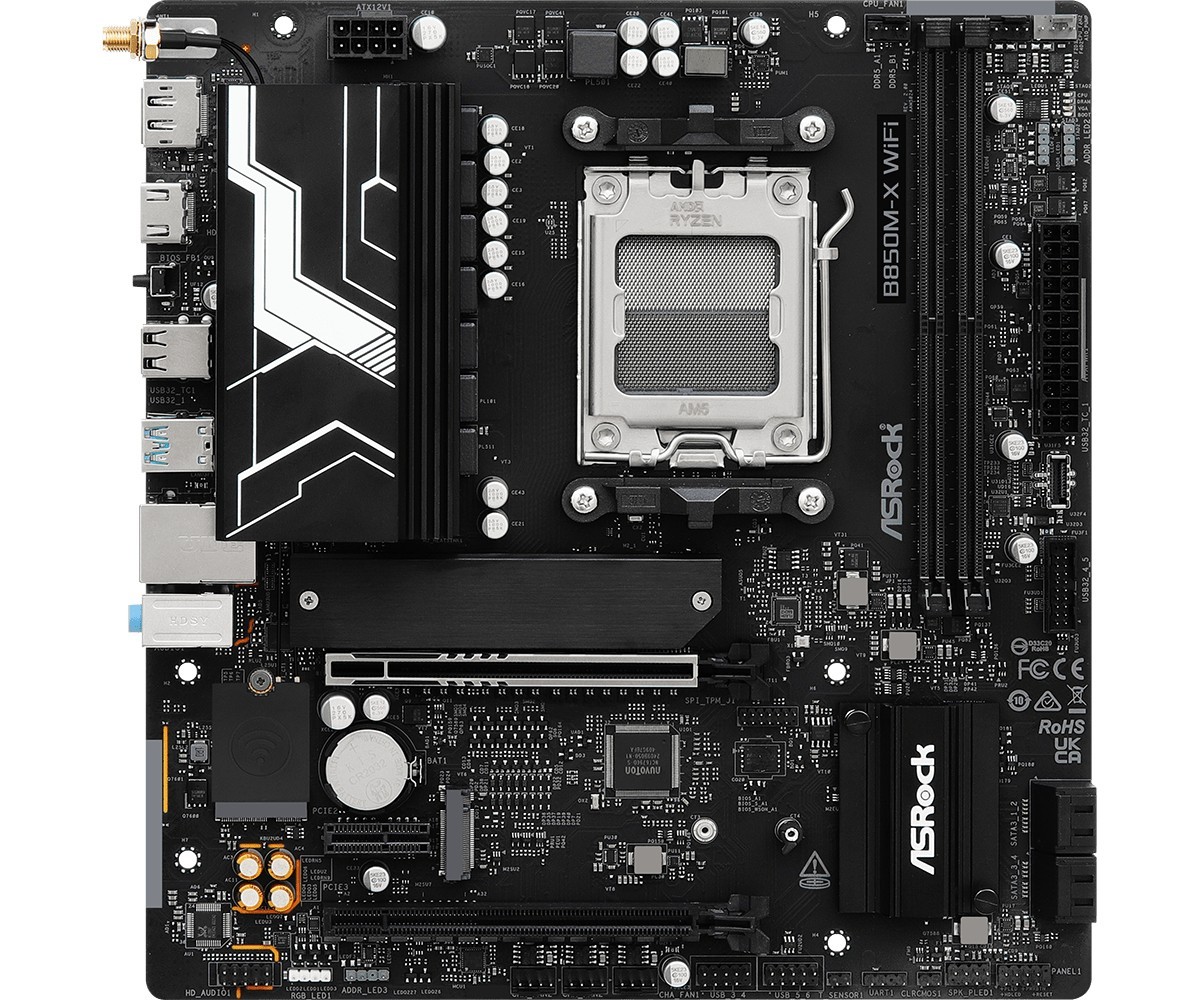

ASRock B850M-X WIFI R2.0 Micro ATX Motherboard with Wi-Fi 6E and DDR5 Support
Part number:
B850M-X WIFI R2.0
EAN:
-
372.83 ₪
excl. VAT
436.21 ₪
incl. VAT
Availability:
21-30
pcs
Order within:
22h
19min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Tuesday, 13 October 2026
227.12 ₪
Payment methods
Delivery methods
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
> 6+1+1 Phase Power Design, Dr.MOS for VCore
> 2 x DDR5 DIMMs
> Supports Dual Channel, up to 8200+ (OC)
> 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x1
> Graphics Output Options: 1 HDMI, 1 DisplayPort
> Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
> 1 Blazing M.2 (PCIe Gen5x4)
> 1 Hyper M.2 (PCIe Gen4x4)
> 4 SATA3
> 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
> 5 USB 3.2 Gen1 (3 Rear, 2 Front)
> 6 USB 2.0 (2 Rear, 4 Front)
> Realtek 2.5G LAN
> 802.11axe Wi-Fi 6E + Bluetooth
> Supports BIOS Flashback
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Asrock B850M-X WiFi R2.0. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Multimedia
Manual (PDF):
Specifications
Processor
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Dragon RTL8125BG
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Wi-Fi
Yes
Bluetooth version
5.2
Memory
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC сompatibility
ECC & non-ECC
Supported memory clock speed (max)
8200 MHz
Unbuffered memory
Yes
Number of memory slots
2
Memory slots type
DIMM
Maximum internal memory
128 GB
Graphics
HDCP
Yes
Parallel processing technology support
Not supported
Features
Motherboard chipset
AMD B850
Component for
PC
Product colour
Black
Motherboard form factor
Micro ATX
Audio chip
Realtek ALC897
Audio output channels
7.1
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
AMD
Storage controllers
RAID support
Yes
RAID levels
0, 1, 10
Supported storage drive types
HDD & SSD
Number of storage drives supported
6
Supported storage drive interfaces
M.2, SATA III
Internal I/O
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
3
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
12V power connector
Yes
EPS power connector (8-pin)
Yes
RGB LED pin header
Yes

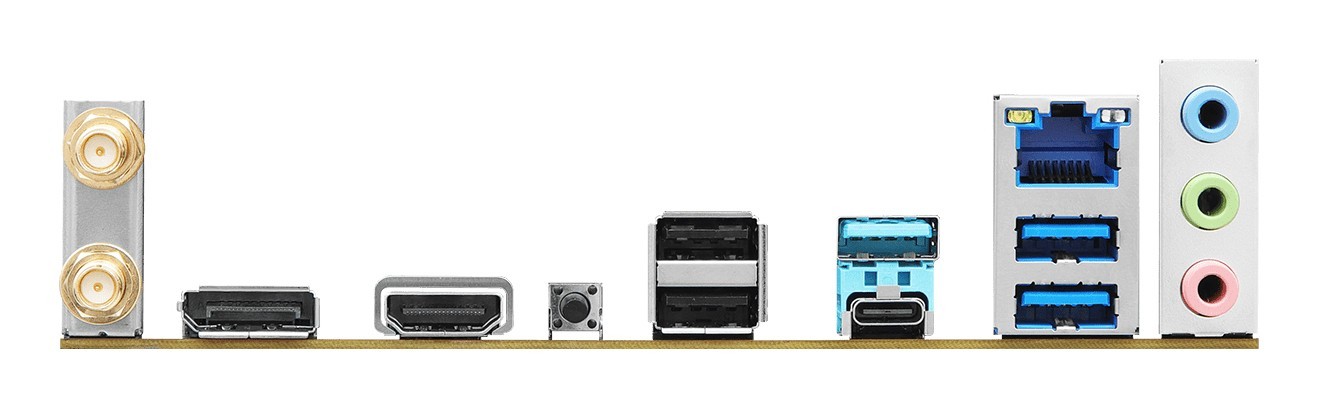

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Line-in
Yes
DisplayPort version
1.4
DisplayPorts quantity
1
Expansion slots
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
2
BIOS
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Packaging content
Cables included
SATA
Antenna included
Yes
Weight & dimensions
Depth
226 mm
Width
244 mm
SKU:
1778126
