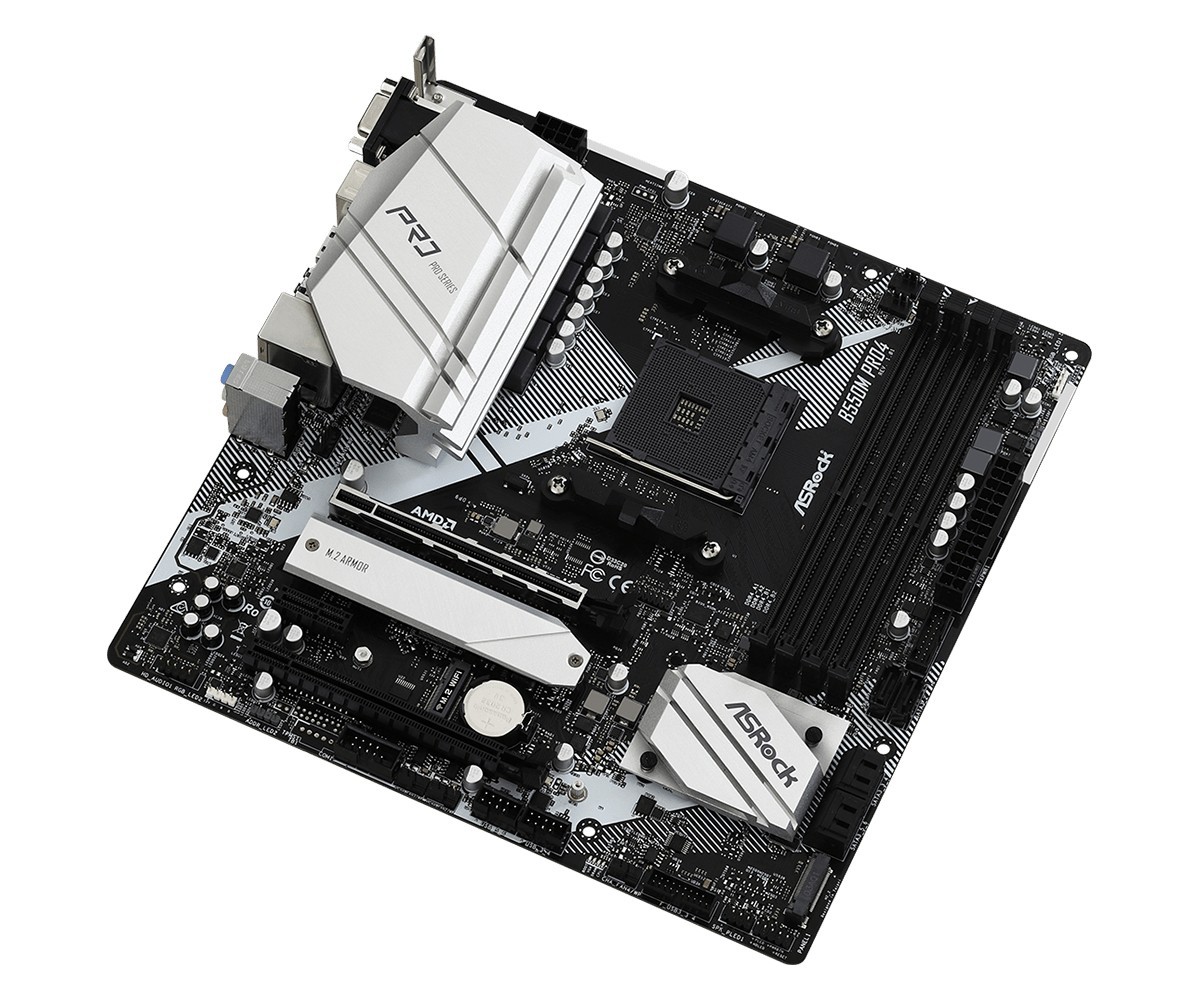

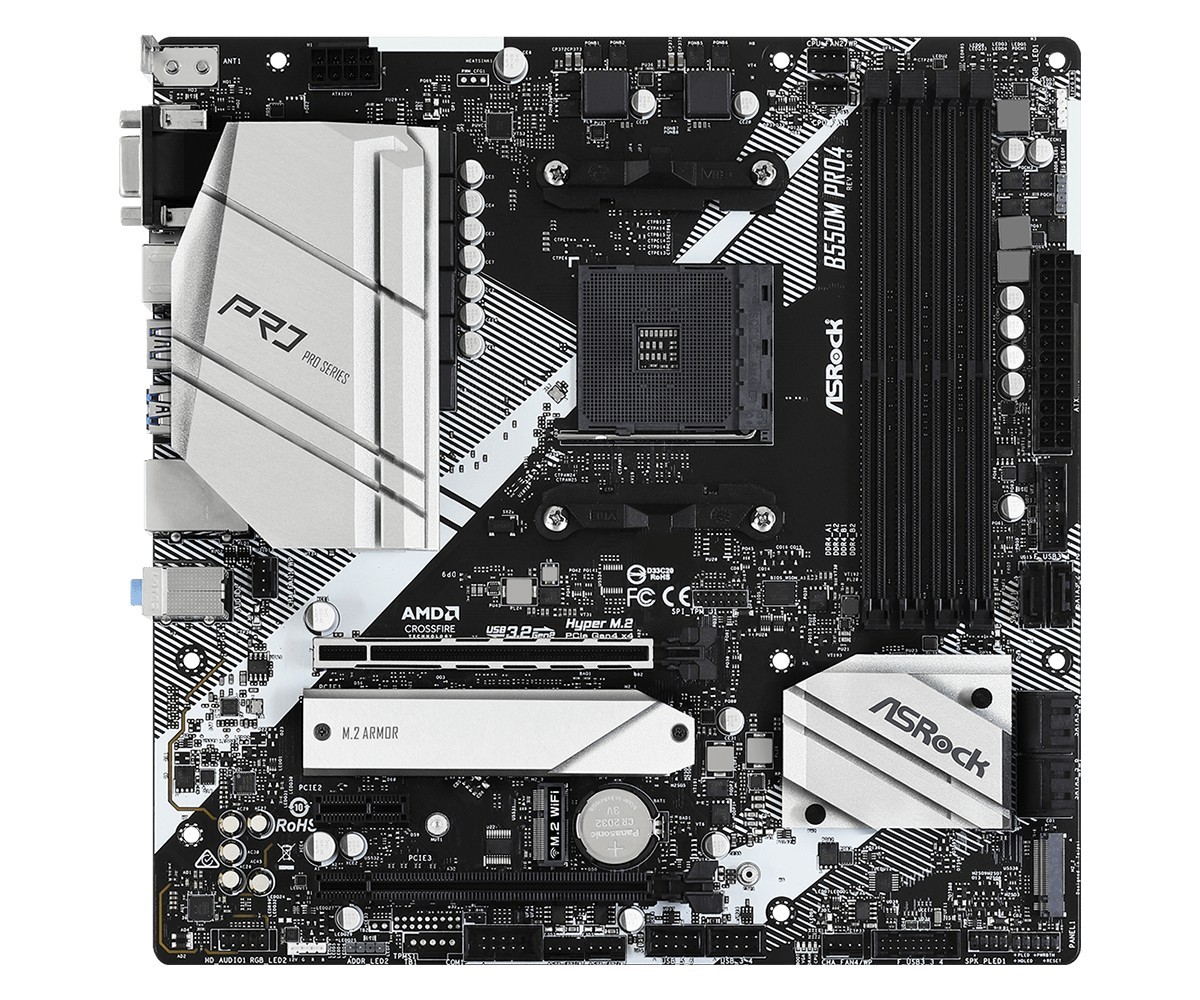

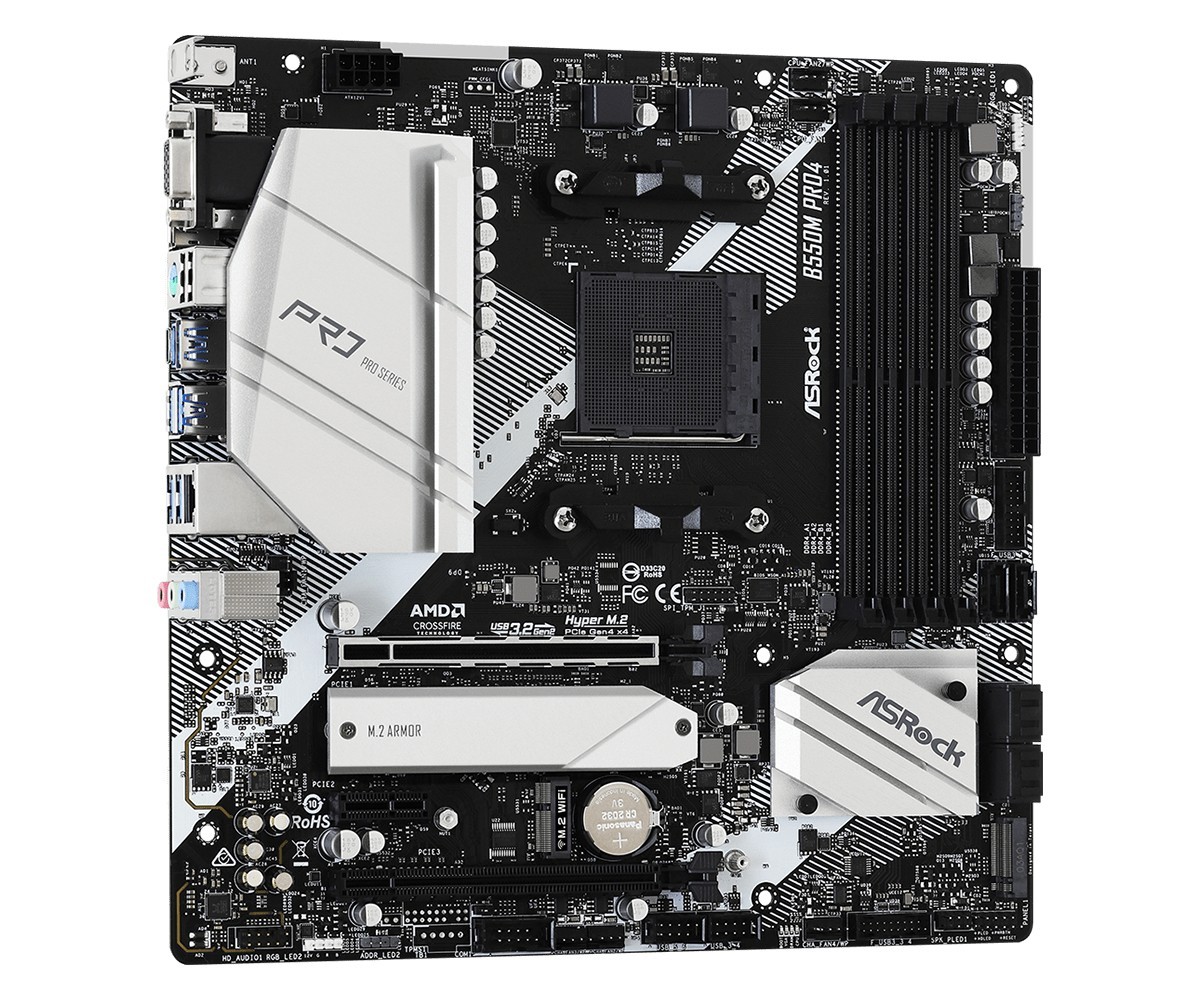

ASRock 90-MXBDK0-A0UAYZ B550M Pro4 Motherboard with AMD Ryzen Support
Part number:
90-MXBDK0-A0UAYZ
EAN:
4710483931598
328.76 ₪
excl. VAT
384.65 ₪
incl. VAT
Availability:
6
pcs
Order within:
21h
37min
The estimated delivery time is provided by the carriers. It allows you to determine the expected date when your order will reach you.
Delivery
Tuesday, 13 October 2026
203.80 ₪
Payment methods
Delivery methods
> Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
> 8 Power Phase Design, Digi Power
> Supports DDR4 4733+ (OC)
> 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
> Graphics Output Options: HDMI, DisplayPort, D-Sub
> AMD CrossFireX™
> 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
> 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
> 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
> Realtek Gigabit LAN
Ideal solutions for your business
We find the optimal solution for your business. Our sales and presales specialists select products and services for our customers every day.
Express delivery of equipment worldwide
We guarantee on-time delivery of your equipment wherever you are. We work with global partners to ensure our logistics are optimised.
Implementation support guaranteed
We offer support in implementing solutions in your business. Our qualified engineers help you manage your infrastructure effectively.
Customer first
Our RMA experts deal with complaints and equipment replacements quickly and efficiently, so that your business can run smoothly.
Description
Asrock B550M Pro4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX, Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Multimedia
Manual (PDF):
Specifications
Processor
Processor manufacturer
AMD
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series
Maximum number of SMP processors
1
Memory
ECC
Yes
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC сompatibility
ECC & non-ECC
Supported memory clock speed (max)
4733 MHz
Supported memory module capacities
16GB, 32GB, 4GB, 8GB
Unbuffered memory
Yes
Number of memory slots
4
Memory slots type
DIMM
Supported memory clock speeds
2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600,4666,4733 MHz
Non-ECC
Yes
Maximum internal memory
128 GB
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Realtek RTL8111H
Wake-on-LAN ready
Yes
Wi-Fi
No
Graphics
Number of displays supported
3
DirectX version
12.0
HDCP
Yes
Maximum resolution
5120 x 2880
Parallel processing technology support
CrossFireX, Quad-GPU CrossFireX
Features
Motherboard chipset
AMD B550
Component for
PC
Motherboard form factor
Micro ATX
Audio chip
Realtek ALC1200
Audio output channels
7.1
Windows operating systems supported
Windows 10 x64, Windows 11 x64
PC health monitoring
CPU, FAN, Temperature, Voltage
Motherboard chipset family
AMD
Certification
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Storage controllers
RAID support
Yes
RAID levels
0, 1, 10
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Internal I/O
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA II connectors
6
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
TPM connector
Yes
Number of COM connectors
1
12V power connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
1
Microphone in
Yes
HDMI ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
HDMI version
2.1
PS/2 ports quantity
1
DisplayPort version
1.4
DisplayPorts quantity
1
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
3
BIOS
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
ACPI version
5.1
System Management BIOS (SMBIOS) version
2.3
Packaging content
Cables included
SATA
Drivers included
Yes
Weight & dimensions
Depth
244 mm
Width
244 mm
Height
70 mm
Other features
Weight
465 g
Logistics data
Harmonized System (HS) code
84733020
SKU:
1664174
