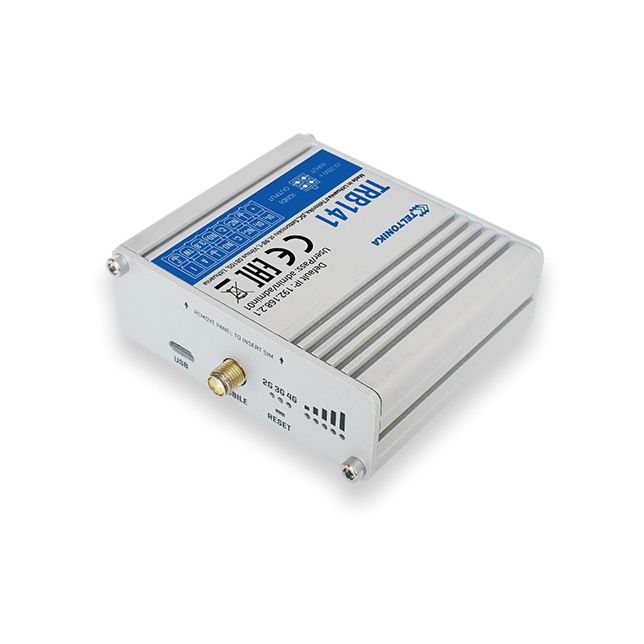

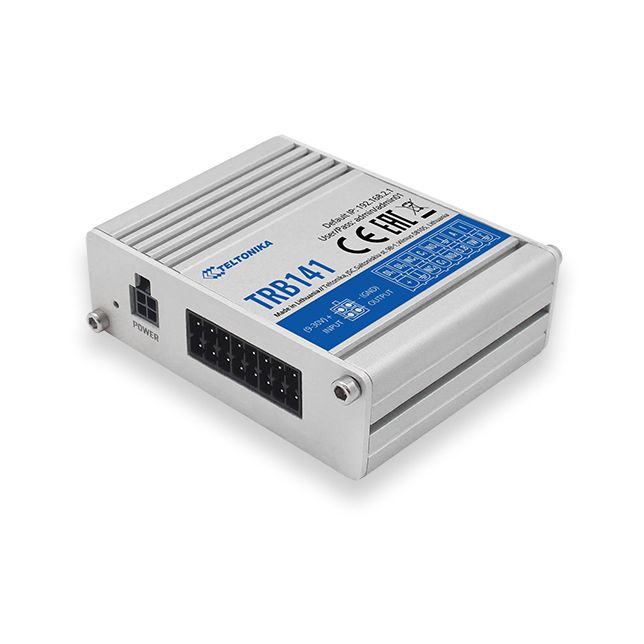

Teltonika TRB141 LTE/4G Compact Industrial Gateway

Teltonika TRB141 Gateway/Controller

Teltonika TRB141

This small industrial LTE Cat 1 gateway is equipped with a micro USB and various Input/Output options, including Digital, Relay, Analog, and Isolated.

Paired with secure and functional RutOS, plenty of processing power, and Teltonika Networks Remote Management System (RMS), this device offers unprecedented application flexibility to manage and control equipment remotely over LTE Cat 1. It has a wide range of software features such as SMS control, VPN, IPsec, Firewall, and FOTA support.

Perfect for application scenarios, where devices must be remotely managed using Inputs/Outputs.

MOBILE

• Mobile module: 4G (LTE) – Cat 1 up to 10 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
• Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
• SMS/Call: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
• USSD: Supports sending and reading Unstructured Supplementary Service Data messages
• Black/White list: Operator black/white list
• Band management: Band lock, Used band status display
• APN: Auto APN
• Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough: Gateway assigns its mobile WAN IP address to another device on LAN
• Multiple PDN: Possibility to use different PDNs for multiple network access and services

NETWORK

• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, SSH, DHCP, SNMP, MQTT
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forwards, traffic rules, custom rules
• DHCP: Static and dynamic IP allocation
• QoS / Smart Queue Management (SQM) (planned): Traffic priority queuing by source/destination, service, protocol or port
• DDNS: Supported >25 service providers, others can be configured manually
• SSHFS: Possibility to mount remote file system via SSH protocol

SECURITY

• Authentication: Pre-shared key, digital certificates, X.509 certificates
• Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• Mobile quota control: Set up custom data limits for SIM card
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 12 encryption methods
• OpenVPN Encryption: DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• IPsec: IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
• GRE: GRE tunnel
• PPTP, L2TP: Client/Server services can run simultaneously, L2TPv3 support
• ZeroTier: ZeroTier VPN
• WireGuard: WireGuard VPN client and server support
